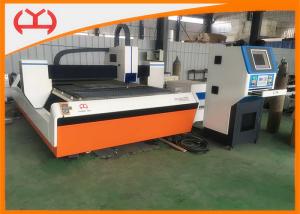

Water Cooling 500W Fiber Laser CNC Cutting MachineFor Stainless Steel
Product introduction:
500W fiber laser cutting machine is the finalize the design product, maximum cutting ability, carbon steel plate up to 6mm,and quality cutting 6mm, and 2mm stainless steel plate; double driving structure of the longitudinal direction with pinion and rack, and also transverse direction with gear and rack transmission, with today's most advanced fiber laser as a laser power source, combined with the company’s independent research and development design.
Fiber Lasers bring you a cost effective, low-maintenance, low operating cost,environmentally friendly solution to your organization. We deliver a machine that providesquality cutting and tolerances with small productivity loss between jobs, equating to higher returnon investments. Our fiber laser cutting machines are developed and sold based on these criteria.
Main features:
1. Reduction in cutting variables or tribal knowledge.
2. Fiber Laser is extremely efficient, equates to very low power consumption.
3. Low cost of operation, energy cost reduced, no laser gases requied to produce beam.
4. High cutting flexibility (Steel, Stainless Steel, Brass, Copper, Titanium, Aluminum, and more).
5. Laser beam transmitted through a fiber optic.cable rather than with mirrors and channel tubing resulting in negligible power loss.
6. Higher cutting speeds possible.
Technology parameters:
| Max cutting size (mm) | 3000×1500 |
| The workpiece maximum height (mm) | 90 |
| Effective travel | X axle(mm) | 1550 |
| Y axle (mm) | 3050 |
| Z axle (mm) | 100 |
| PositionaI accuracy | X axle (mm/m) | ±0.05/1000 |
| Y axle (mm/m) | ±0.05/1000 |
| Z axle (mm/m) | ±0.01/100 |
| repeated positioning accuracy | X axle (mm) | ±0.01 |
| Y axle (mm) | ±0.01 |
| Z axle (mm) | ±0.005 |
| Rapid positioning speed | X axle (m/min) | 72 |
| Y axle (m/min) | 72 |
| Z axle (m/min) | 15 |
| Max Cutting Speed (m/min) | 15 |
| IP Grade | IP54 |
| Total weight (T) | 4.35 |
| Machine Power Consumption (Kwh) | 1.6 |
| Boundary dimension L×W×H(mm) | 4191×2520×1326 |
Laser & process parameters:
| Items | Technical parameters |
| working mode | Continuous/modulation |
| Laser power(W) | 500 |
| Laser wavelength (nm) | 1070 |
| The maximum modulation frequency (KHz) | 5 |
| laser mode | Multi mode |
| Optical quality (M2) | 2.2mm*mrad |
| Power adjust range (%) | 5-100 |
| Fiber Length (m) | 10m |
| Type of cooling | water-cooling |
| Operating temperature (℃) | 10-40 |
| Long-term stability (24h) | ﹤2% |
| Laser life(h) | 100000 |
| maximum cutting thickness | MS (mm) | 12 |
| SS(mm) | 4 |
| cutting speed (1mm MS) | 15m/min |
| Focal length F(mm) | 150 |
| Adjustable focus range (mm) | 0-10 |
| Overall Power Consumption (Kwh) | 4 |
Cutting Sample:
